Obtaining Transfer Function using Block Diagram Reduction

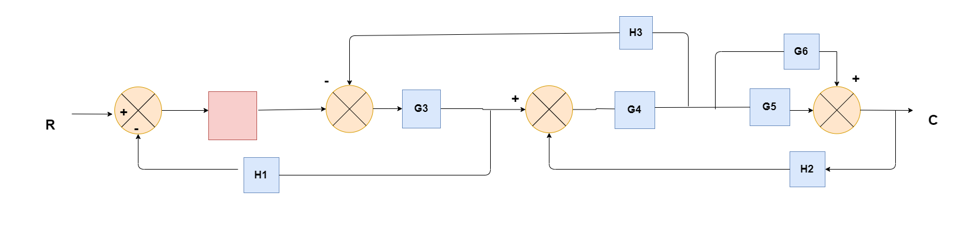

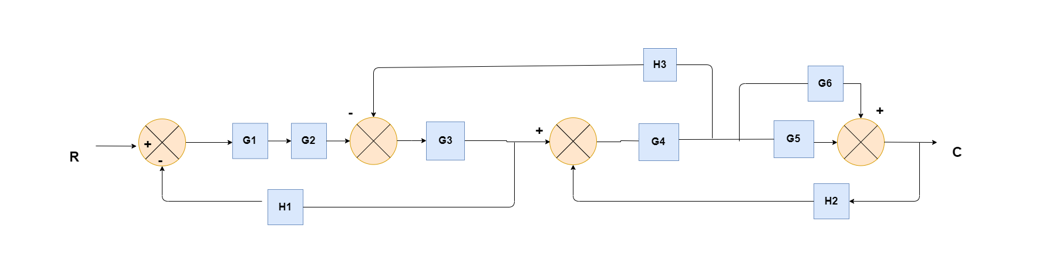

Original circuit:
Enter resultant gain value for two blocks are in series:
Submit
Hint
Next
Show answer
Hint - Two blocks are in series
Step 2:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for two blocks are in Parallel:
Submit
Hint
Next
Show answer

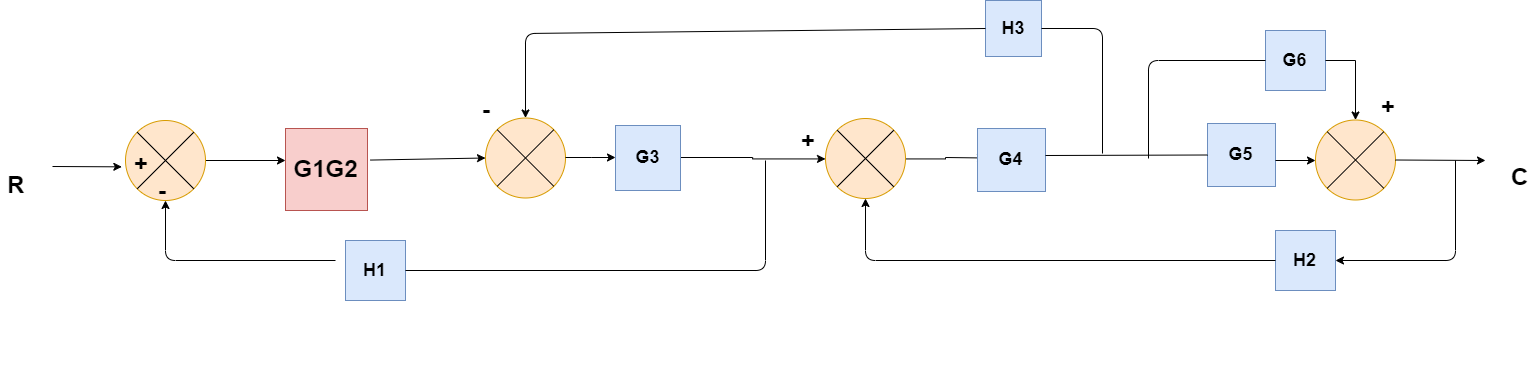

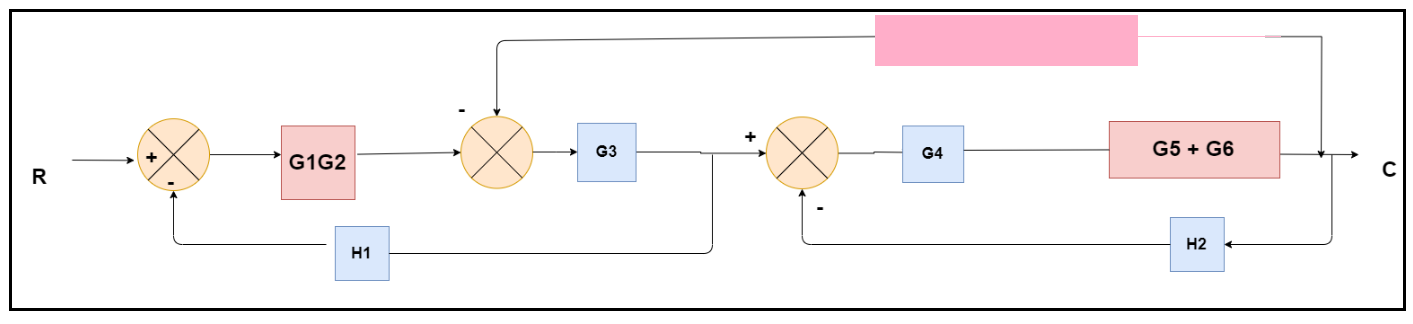

Required circuit:

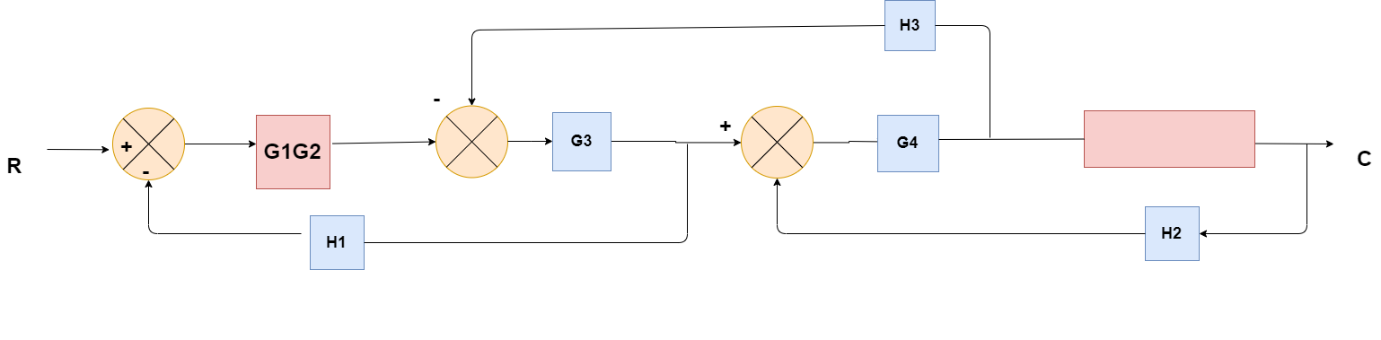

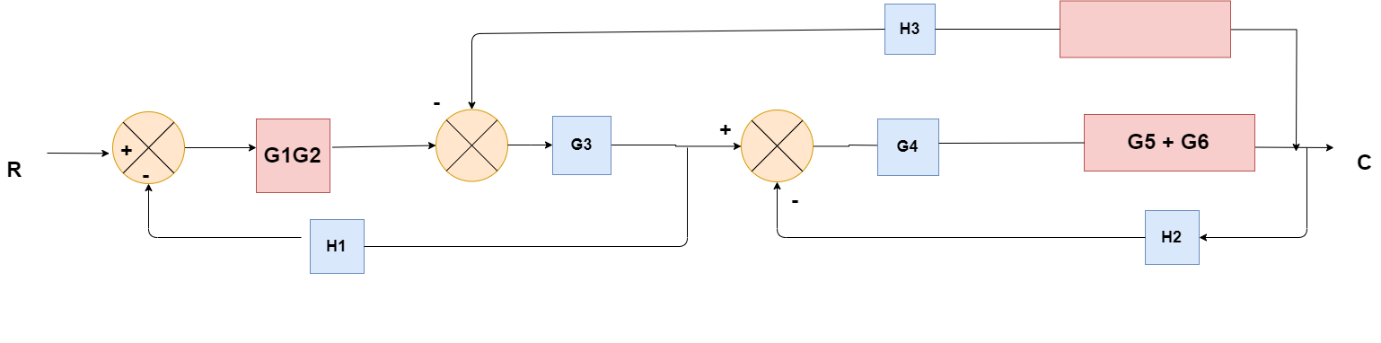

Step 3:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.

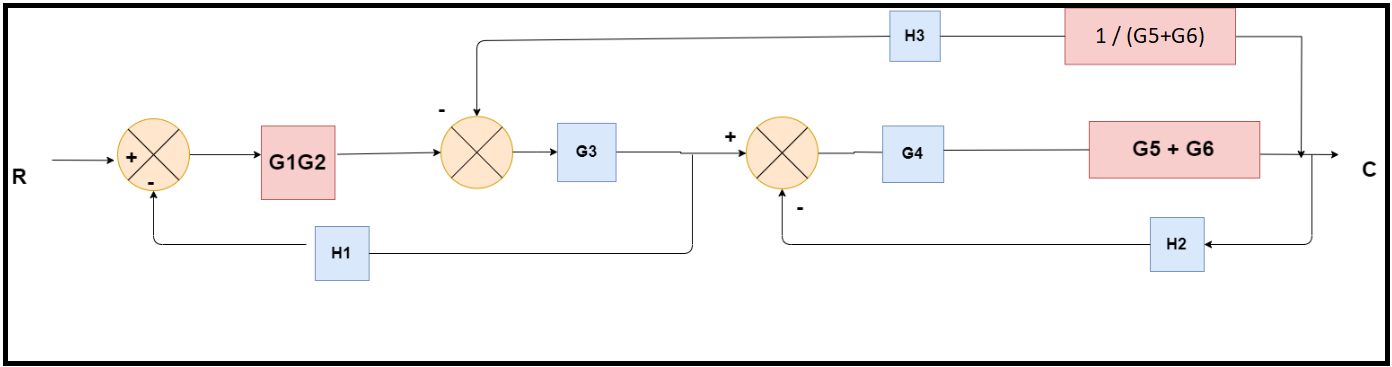

Enter resultant gain value moving the take of point to right :
Submit
Hint
Next
Show answer
Hint - Shift the branch point towards right

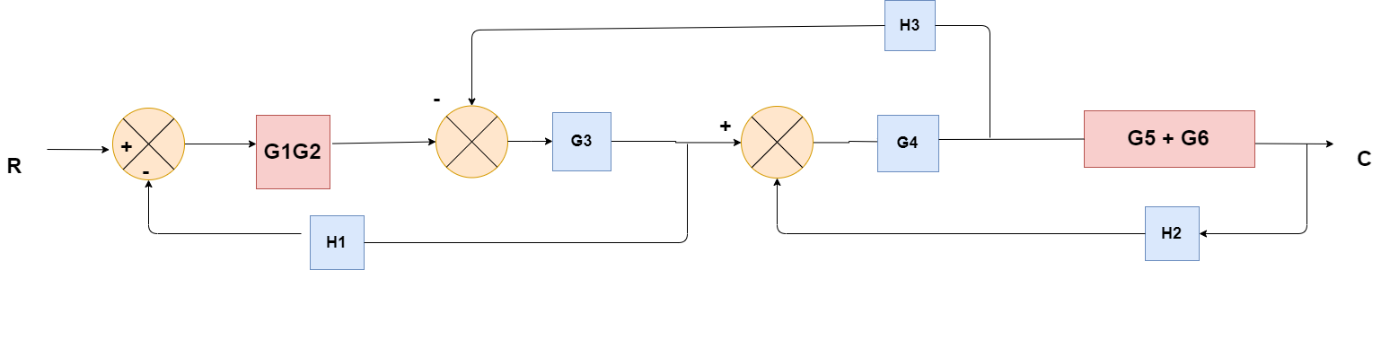

Required circuit :
1. Two parallel blocks' total transfer functions are
(Choose 1 answer)
Sum of individual gain
Difference of individual gain
Submit
Reset
2. The cause of oscillations in the output response is
(Choose 1 answer)
Positive feedback
Negative feedback
Submit
Reset
3. What are the lines that connect the blocks in a block diagram called?
(Choose 1 answer)
Branches
Nodes
Submit
Reset

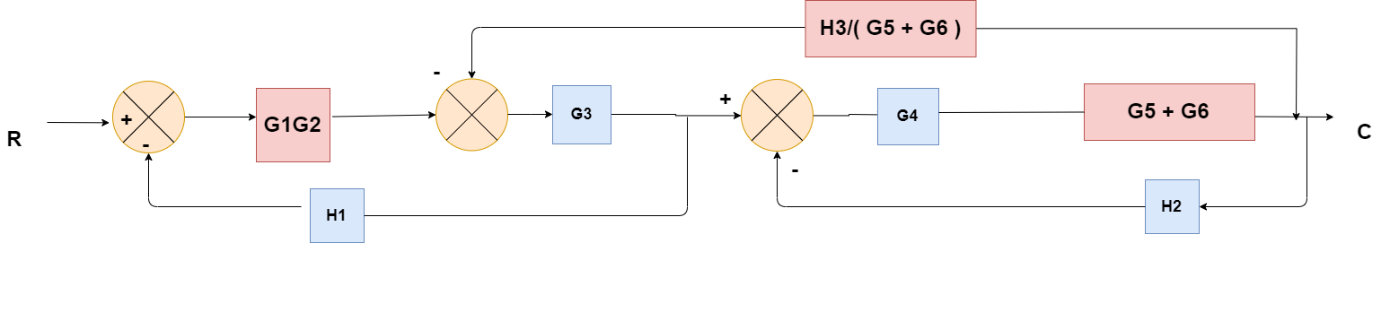

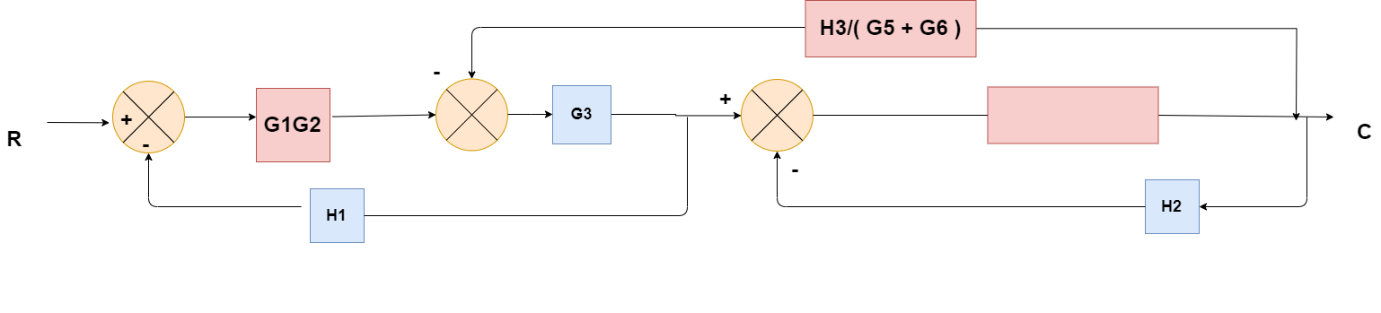

Step 4:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for two blocks are in series :
Submit
Hint
Next
Show answer
Hint - Two blocks are in series
Required circuit:
Step 5:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for two blocks are in series :
Submit
Hint
Next
Show answer
Hint - Two blocks are in series
Required circuit:

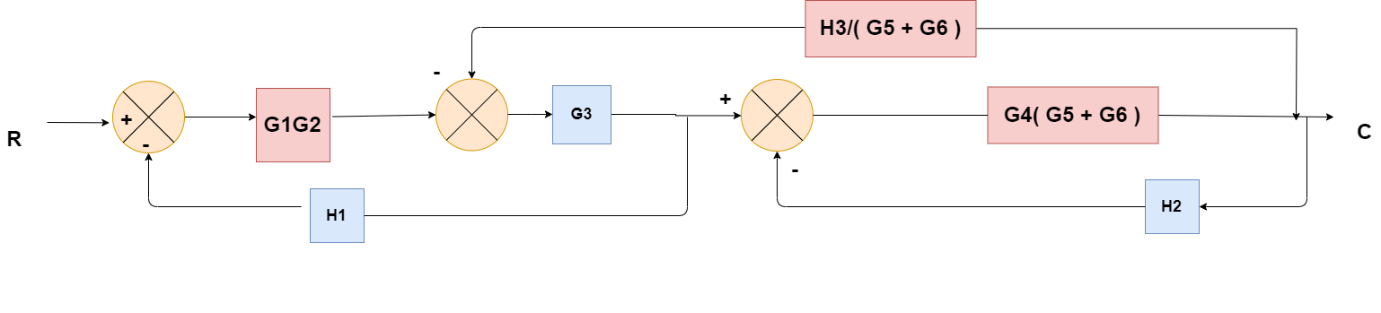

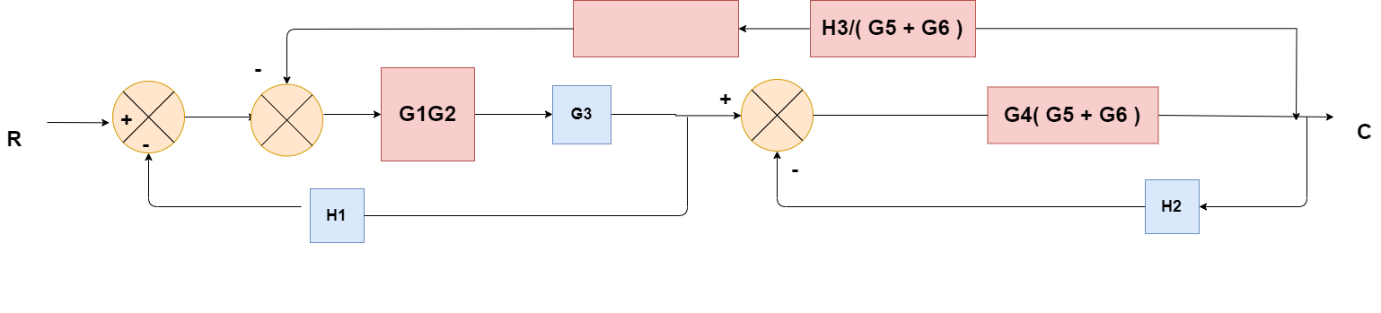

Step 6:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for moving the summing point to left :
Submit
Hint
Next
Show answer
Hint - Shift the Summing point towards left

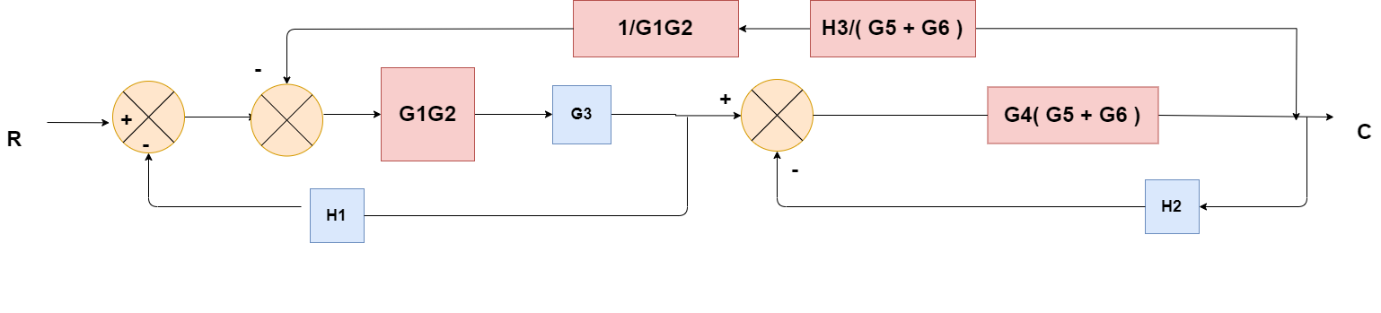

Required circuit :
Step 7:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for repeated two blocks are in series:
Submit
Hint
Next
Show answer
Hint - Two blocks are in series

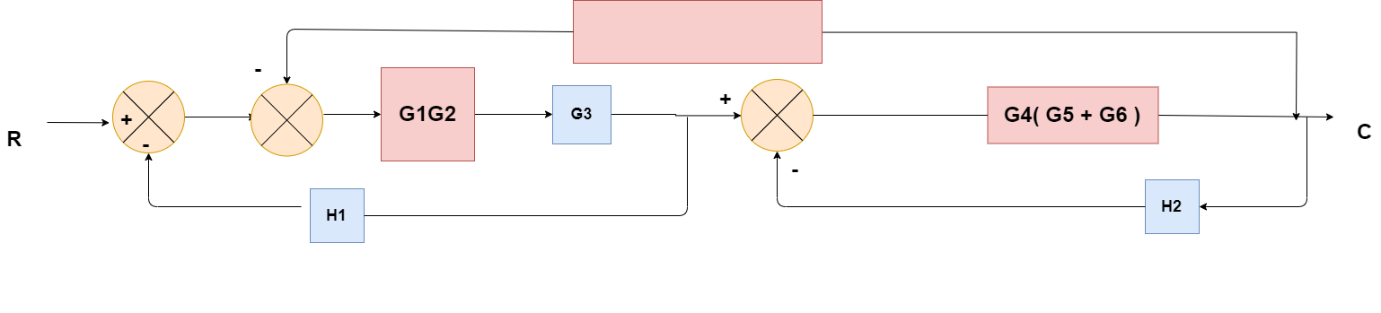

Required circuit:

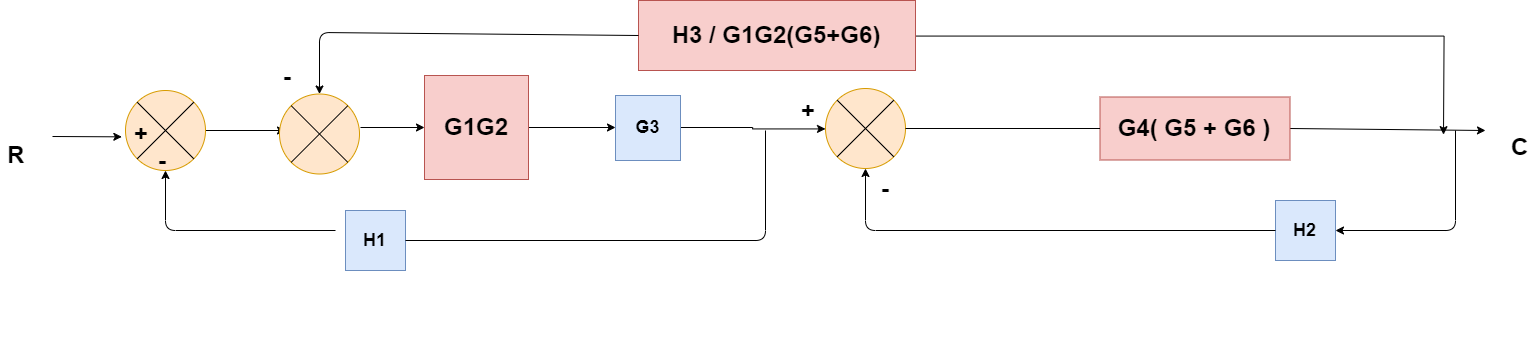

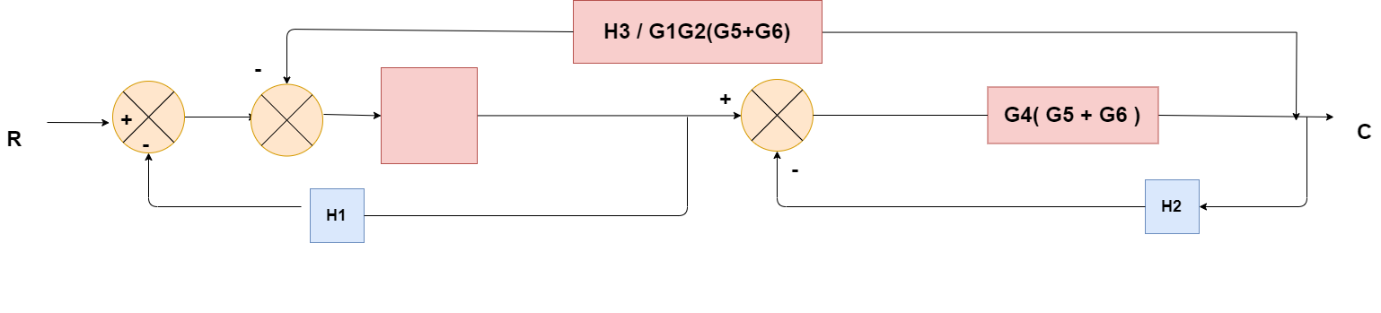

Step 8:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for two blocks are in series :
Submit
Hint
Next
Show answer
Hint - Two blocks are in series
Riquired circuit:

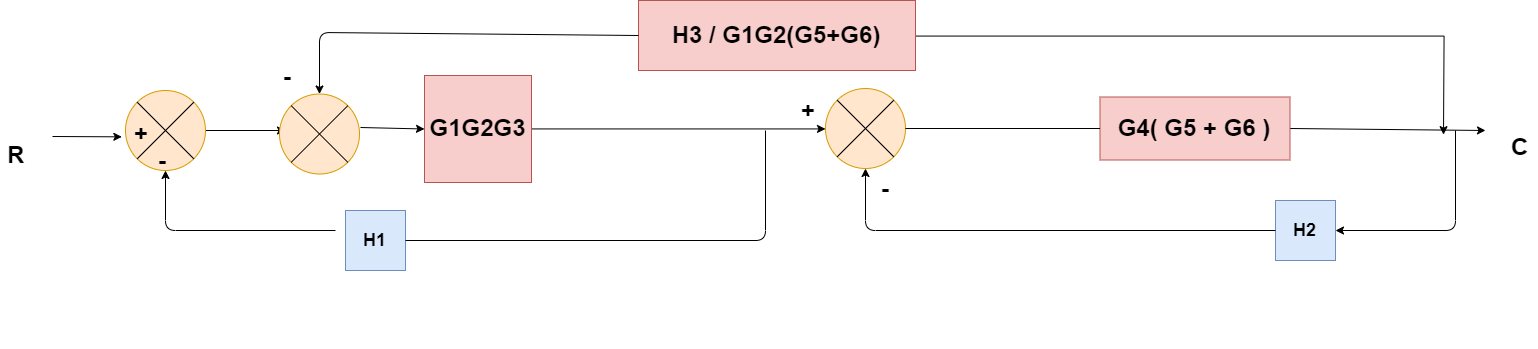

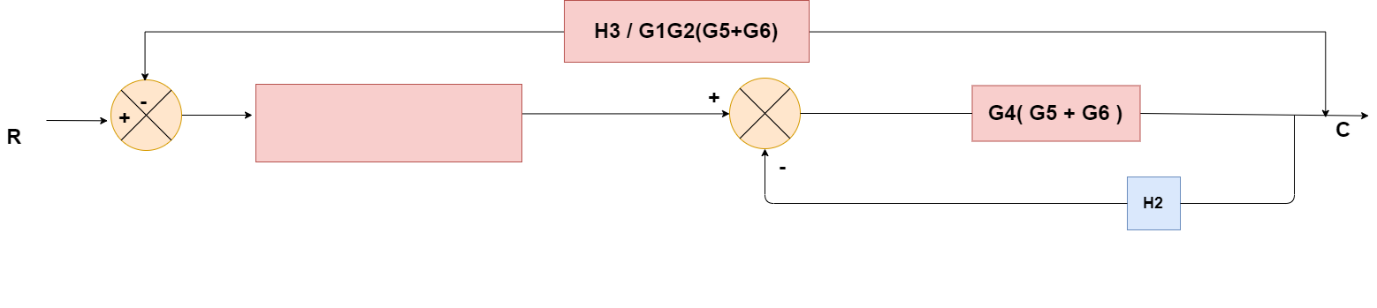

Step 9:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Mention the two summing points to be interchanged (Assume the summing point numbers 1,2,3 in sequence from left to right) :
Submit
Hint
Next
Show answer
Hint - Summing point 1 & 2

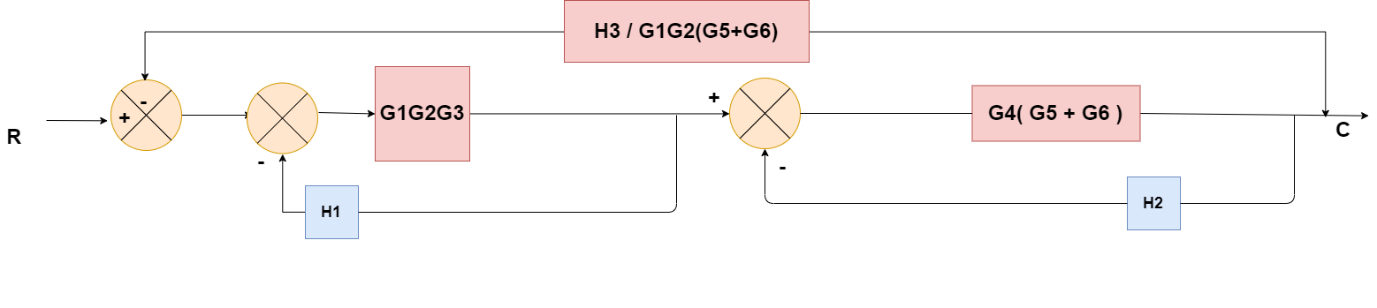

Riquired circuit:

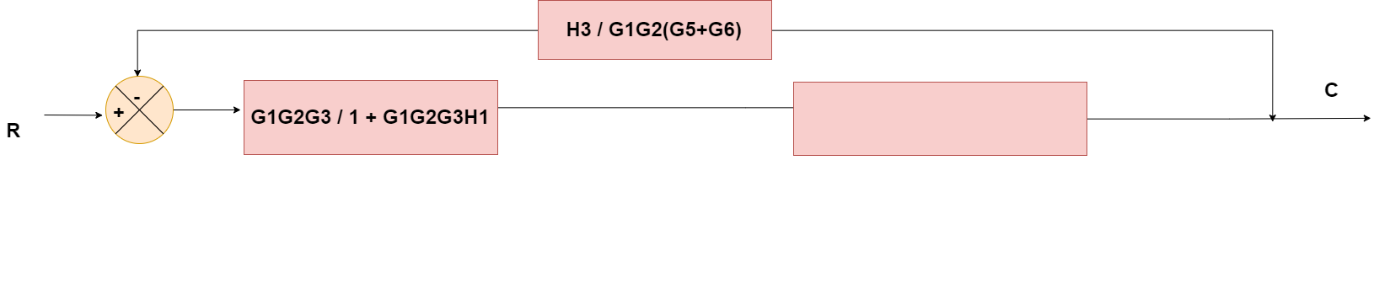

Step 10:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for eliminating the feedback loop1 :
Submit
Hint
Next
Show answer
Hint - Summing point 1 & 2

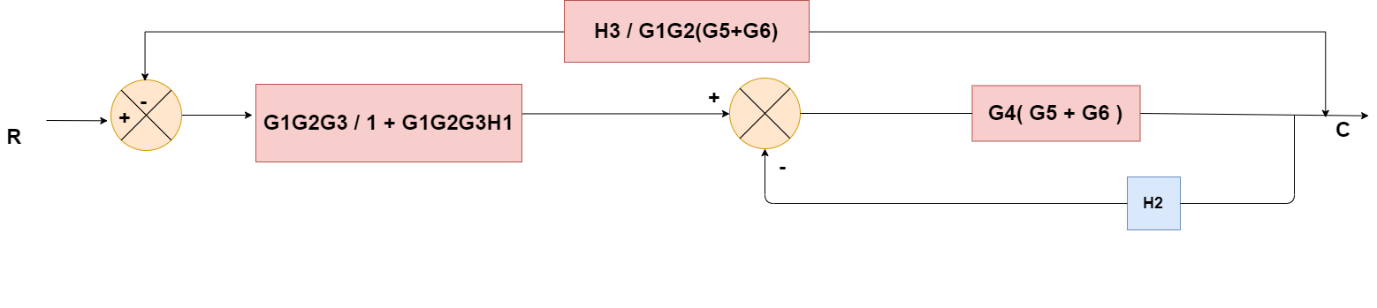

Riquired circuit:

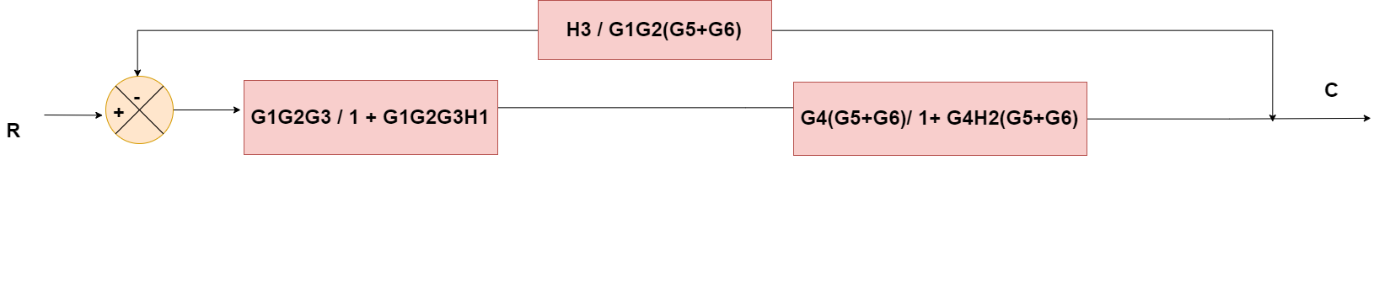

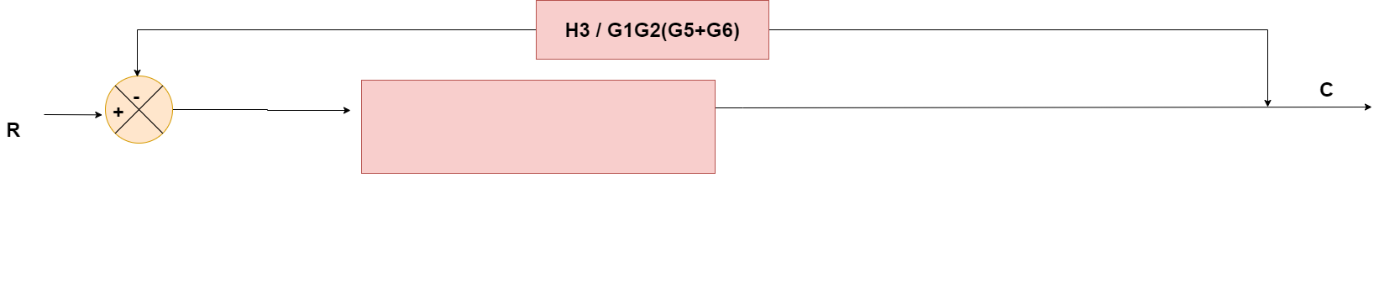

Step 11:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for eliminating the feedback loop2 :
Submit
Hint
Next
Show answer
Hint - There is a negative feedback loop.
Riquired circuit:
Original circuit:
Step 12:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for blocks are in series :
Submit
Hint
Next
Show answer
Hint - Two blocks are in series.

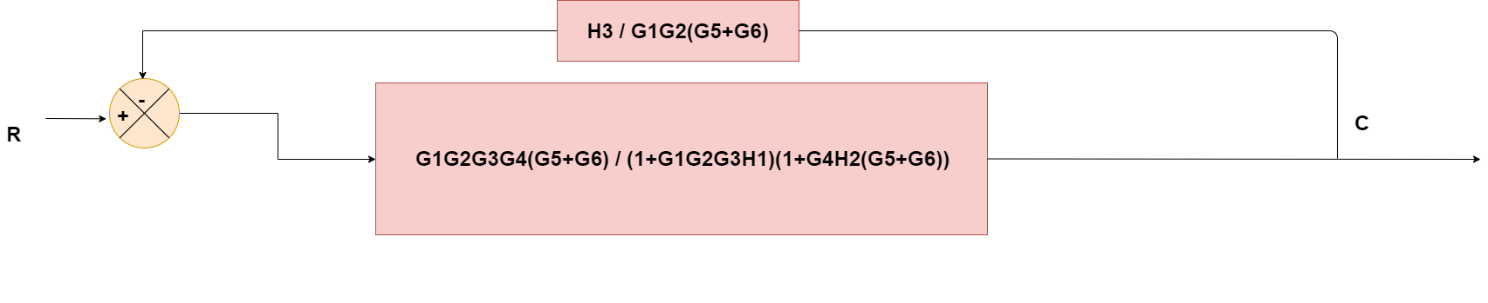

Riquired circuit:
Final step:
Refer to the unsimplified circuit and the value so that the logic of the circuit remains same but it gets simplified.
Enter resultant gain value for eliminating the feedback loop :
Submit
Hint
Next
Show answer
Hint - There is a negative feedback loop.
Riquired circuit:
Final step:
Enter the overall gain value :
Submit
Finish
Show answer
Original circuit:

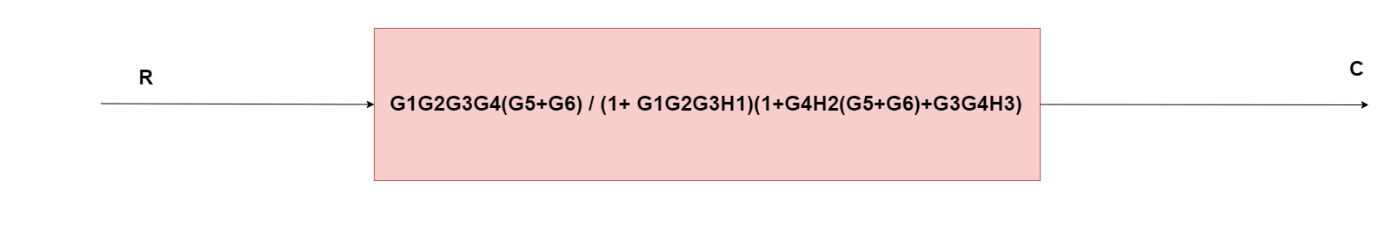

Final circuit:
